Details

---

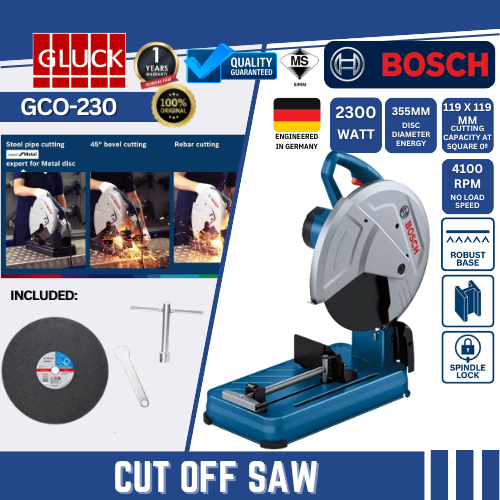

Cuts steel like butter. Power redefined.
Powerful cutting performance: Improved motor design to make tough cutting easier
Long lifespan: Improved gearing system increases longevity
Easy to carry: Reduced base size improves portability

TECHNICAL DATA
Cutting disc diameter=355 mm
Cutting disc bore=25.4 mm
No-load speed=4100 rpm
Rated input power=2,300 W
Cutting capacity at rectangle 0º=100 x 196 mm
Cutting capacity at square 0º=119 x 119 mm
Cutting capacity at L-profile 0º=130 x 130 mm
Cutting capacity at rectangle 45º mitre=107 x 115 mm
Cutting capacity at square 45º mitre=110 x 110 mm
Cutting capacity at L-profile 45º mitre=115 x 115 mm
Tool dimensions (width x length x height)=256 x 520 x 400 mm
Weight=15 kg

Total vibration values (Cutting metal)
Vibration emission value ah=2.5 m/s²
Uncertainty K=1.5 m/s²

Noise/vibration information
Sound pressure level=100.5 dB(A)
Sound power level=113 dB(A)
Uncertainty K=3 dB

Cutting metal
Vibration emission value ah=2.5 m/s²
Uncertainty K=1.5 m/s²
